Manual controls¶

Audience: operators issuing one-off commands — taring a balance, setting a heater between runs, picking a webcam resolution. Scope: the Manual Control dock, the per-device cards inside it, how commands route to the right place at the right time, and the confirmation dialog that protects destructive operations.

Anatomy¶

The dock is one vertically-stacked, scrollable list of cards. One card per device that advertises any manual-relevant capability.

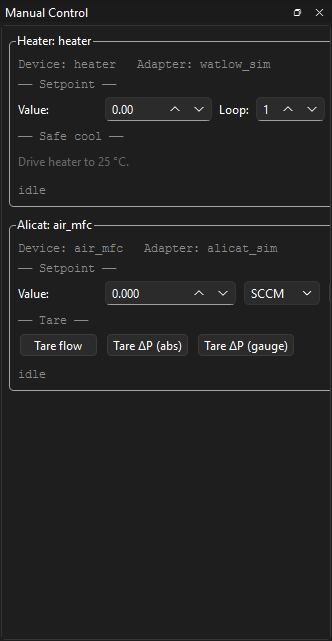

Manual control dock with two cards: Heater "heater" (watlow_sim, setpoint + safe-cool) and Alicat "air_mfc" (alicat_sim, setpoint + tare flow / ΔP). Both show idle status.

┌─ Manual Control ─────────────────────────────────────────────────┐
│                                                                  │
│  ┌─ Balance: balance_main ────────────────────────────────────┐  │
│  │  Last cal: 22.4 °C                                         │  │
│  │  [Tare]   [Zero]   [Internal cal…]   [Save settings…]      │  │
│  │  Filter: [stable    ▾]   Auto-zero: [on ▾]                 │  │
│  └────────────────────────────────────────────────────────────┘  │
│                                                                  │
│  ┌─ Heater: heater_01 ────────────────────────────────────────┐  │
│  │  PV: 24.6 °C    SP: 25.0 °C                                │  │
│  │  Setpoint: [   25.0  ] °C   [Apply]                        │  │
│  │  [Heat-flux tune…]                                         │  │
│  └────────────────────────────────────────────────────────────┘  │
│                                                                  │
│  ┌─ Alicat: mfc_n2 ───────────────────────────────────────────┐  │
│  │  Gas: N2   Setpoint: 0 SLPM                                │  │
│  │  Value: [   0.000 ] SLPM   [Set]                           │  │
│  │  Gas: [N2 ▾]   [Set (session)]   [Set + save (EEPROM)]     │  │
│  └────────────────────────────────────────────────────────────┘  │
│                                                                  │
└──────────────────────────────────────────────────────────────────┘

The dock can be torn off and re-docked on any edge of the main window.

When no config is loaded:

$Manual control dock empty state: "No config loaded.\n\nOpen a config from File → Open Config…"$

When a config has loaded but no device advertises a manual-control capability:

No devices with manual controls in this config.

How cards appear and disappear¶

The dock rebuilds on every config-load. Cards are gated reflectively on each adapter's Capability flagset. If a device advertises none of the manual-relevant capabilities (HAS_TARE, HAS_ZERO, HAS_INTERNAL_CAL, HAS_PARAMETER_CONFIG, HAS_SETPOINT, HAS_GAS_SELECT, HAS_VALVE_HOLD, HAS_TOTALIZER, HAS_DISPLAY_CONTROL, HAS_GAS_CALIBRATION, HAS_SENSOR_HEATER), the device is skipped entirely — no empty card.

If the worker pool is still opening when the dock builds, the cards fall back to the adapter-import-string fingerprint (e.g. sartorius → balance, alicat → MFC) to pick the right card class. Their controls stay disabled until the pool is open.

An Alicat only reports whether it is a controller once it has been opened, so the Alicat card shows every section until then. Once the pool is open it rebuilds from the device's real flags: a meter loses its Setpoint and Valves sections. It then reads the active gas, the gas list and the setpoint from the device; the subtitle shows the active gas and setpoint, and the gas box stays empty until the device has reported one. The setpoint is always in the device's own engineering units, shown beside the value: the card has no unit to pick, because the device applies the number in its units whatever unit is named. Change units on the device itself. On firmware that reports its setpoint unit, a setpoint sent after the device's unit has changed is refused.

The seven card classes that ship today:

Card	Devices it matches	Common controls
HeaterCard	Watlow temperature controllers	Setpoint, Heat-flux tune launcher
Sht4xCard	SHT4x ambient sensors	Measurement precision; a confirmed heater pulse (power and duration); soft reset. The subtitle shows the sensor's serial, the bridge revision, the last reading and the heater history
BalanceCard	Sartorius balances	Tare, zero, internal cal, filter / auto-zero / display unit / tare behavior, save settings; shows those settings and the last calibration
AlicatCard	Alicat MFCs and pressure devices	Flow setpoint, gas select, valve hold, totalizer reset; shows the device's active gas and setpoint
FujiCard	Fuji ZP-series gas analyzers	Per gas: response time, range (picked by its span, e.g. `0–25 vol%`) and range method; output hold and hold mode; calibration-gas setting; a guarded zero or span with a live steadiness readout. Everything is named by gas, not channel number, and every field shows the analyzer's current setting
FlirCard	FLIR IR cameras	Temperature range (picked from the ranges the camera reports, in °C), NUC trigger, auto-NUC interval, radiometric parameters, palettes (choices read from the camera); every field shows the camera's current setting
WebcamCard	USB / built-in cameras	Resolution, framerate; zoom, pan, tilt, focus, exposure, white balance and image adjustments, read live from the camera (Windows)

Routing: where does my command actually go?¶

Cards never dispatch directly. They go through ManualClient, which routes one of two ways depending on the current run state:

When	Routes to	Recorded in bundle?
`IDLE` / `SEALED` / `FAILED` (no run, or run finished)	WorkerPool	No — there is no run. The dispatch shows up in the events dock as a "manual_event" for audit.
`RUNNING`	Conductor	Yes — the command is recorded as an event in `events.sqlite`. The operator id is stamped onto it.
`PREPARING`, `DRAINING`, `FINALIZING` (write-blocked states)	Refused	Card disables its buttons.

During a run, the cards show their write-blocked state inline:

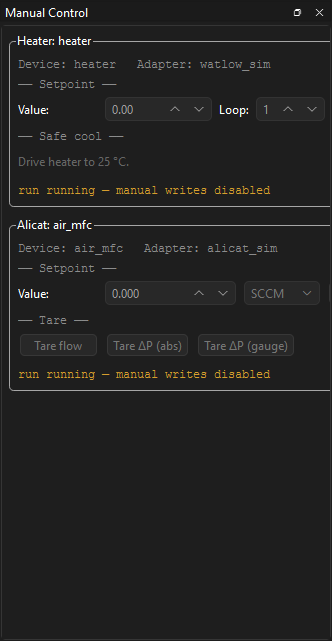

Manual dock during a run: both cards' value spinboxes and action buttons are grayed; the inline status text reads run running — manual writes disabled.

The write-blocked states exist because the conductor doesn't own the workers cleanly during them — PREPARING is opening, DRAINING is disarming, FINALIZING has already handed the bundle to the sealer. Trying to dispatch a manual command in those windows would race the state machine.

If you need to change a setpoint mid-run, the right place is during RUNNING. The card will accept it, the conductor will route it, and the change is captured in the bundle alongside the sample data.

Confirmation for destructive operations¶

Some manual commands physically change the device's stored state in a way that can't be undone by a power cycle. These show a confirmation dialog before dispatching:

Balance: Internal cal, Save settings (writes EEPROM), Reload from EEPROM.
Heater: Save parameters (writes EEPROM).
Alicat: Save calibration (when chosen), Reset totalizer peak-flow watermarks.

The dialog spells out exactly what's about to happen — for example:

Confirm destructive operation:

Trigger internal calibration on balance_main. Requires ~30 s; the balance refuses other commands during the cal cycle.

Proceed?

This is a standard modal QMessageBox — click Yes / No, not hold-to- confirm. (The 1-second hold-to-confirm pattern is used only for the Emergency stop button on the Run tab, where the cost of a misclick is much higher.)

Non-destructive commands (Tare, Zero, setpoint changes, gas select) dispatch immediately on click.

A confirmation in flight:

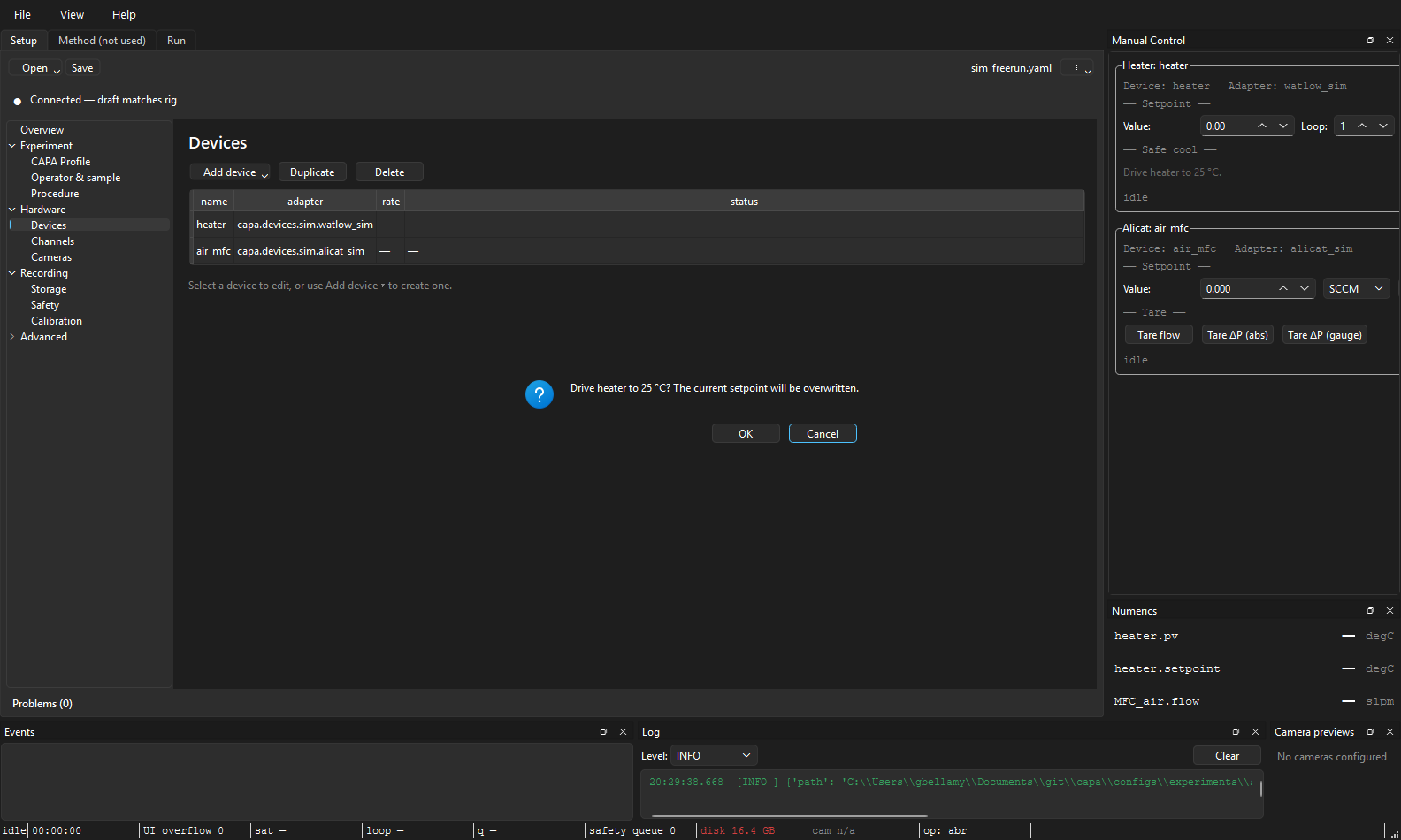

Confirmation dialog: "Drive heater to 0 °C? The current setpoint will be overwritten." with OK / Cancel buttons.

Read-back values¶

Each card shows the device's current state above its controls — a heater card shows PV and SP, a balance shows the temperature at its last calibration (Last cal: 22.4 °C, or none since power-up; the balance keeps no date), an MFC shows its active gas and setpoint, an IR camera shows its active temperature range. A setting the card can change — an MFC's gas, a balance's filter mode — is selected from what the device reports, and stays empty until the device has reported it. Every field on an IR camera card — range, auto-NUC interval, radiometric values, both palettes — shows the camera's setting; one you have changed but not yet applied keeps your change through a refresh, and a command you cancel at its confirmation leaves it changed.

A gas analyzer card works the same way, and names everything as the bench does: each channel by its gas (CO2, not CH1; a gas on two channels as CO (CH2)), each range by its span (0–25 vol%, not 1), and each option by what it does (Last reading / Preset value). Pick a gas under Settings to see its response time, range and range method. The subtitle shows the live concentrations; the calibration-gas setting shows the analyzer's gas for the gas, range and kind picked.

These refresh:

Once the pool reports ready, asynchronously.
After a command that changes them — a setpoint, a gas, a balance setting or calibration — so the card shows what the device took.
After device settings are applied from the Device settings dialog.
Every second, for a gas analyzer card that is visible while no run is active: the concentrations are polled each time, and the settings are read again once they are 10 s old, so a change made at the analyzer's front panel shows within that time.

Setting devices from the experiment¶

Settings you'd otherwise pick on these cards every time — the MFC's gas, the balance's stability settings, the gas analyzer's response times and ranges, the IR camera's range and radiometric values, the webcam's zoom, pan, tilt, focus and exposure — can be declared in the experiment under device_settings:. When the config loads, capa compares the devices with the declaration and, if anything differs, lists it in a Device settings dialog; Apply sends the ticked changes the same way these cards do, and the cards refresh to show them. File → Apply Device Settings… runs the check again on demand.

If the read-back fails (typically because the pool is mid-rebuild after a cold reload), the card logs at debug level and leaves the previous value visible. No banner; the next refresh attempt catches up.

Jumping to a card from the Setup tab¶

In the Setup tab's Devices section, right-click a row → Open manual control. The main window switches to the Run tab, shows the manual dock if it was hidden, and scrolls the named device's card into view (centred in the viewport).

Convenient when you're triaging a device that's misbehaving and don't want to scrub through a long manual-dock scroll.

See also: The Run tab for write-blocked-state gating, The Setup tab for the Devices section that jumps here, Authorization gates and Destructive operations for the safety contract behind the confirmation dialog.
